S&S Swan Maintenance - Forward Sliding Hatch - 43
16 March 2020 - 19:39
#1
Join Date: 15 April 2011
Posts: 385

Forward Sliding Hatch - 43

Dear All,

I remember a forum string in which partial plans for the Swan 43 forward sliding hatch were posted.  Unfortunately, I cannot seem to find that post.  Also, I seem to remember that the plans were difficult to read, meaing, they may have lacked digital clarity.

My boat, Swan 43/003 came without the beautiful hatch so I will need to build one and am in need of plans.

Fair winds,



Chris Mabel's Casse Tete 43/003

16 March 2020 - 22:39
#2
Join Date: 29 January 2007
Posts: 928

Dear Chris,

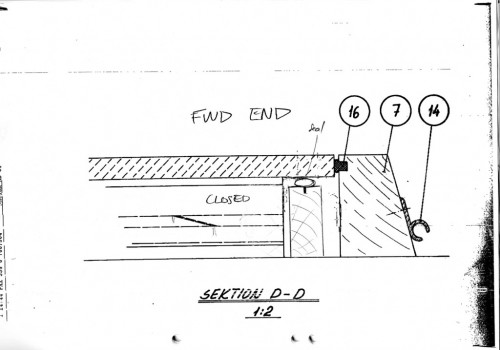

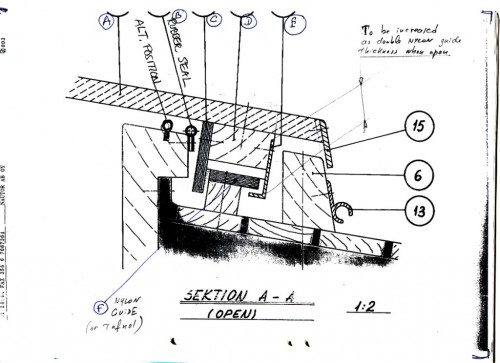

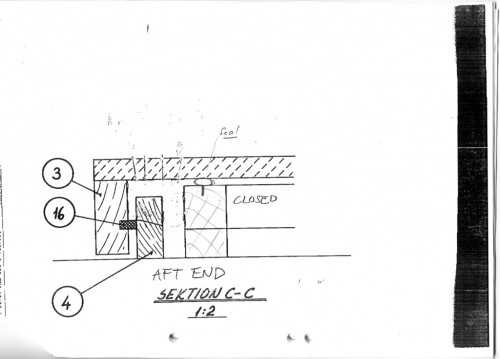

some drawings here, with Philippe's modification, I will send you  better definition images by mail, hope they could be of help.

Fair winds!

matteo (47/069 Vanessa)

17 March 2020 - 11:25
#3
Join Date: 15 April 2011
Posts: 385

Dear Matteo,



Thank you!

Chris
