Associated Swan 48's:





























1971-1975 - S&S des. #2079 - 46 hulls built
GENERAL DIMENSION
Loa:
47.9 ft
14.6 m
Lwl:
37.28 ft
11.36 m
Beam:
13.6 ft
4.15 m
Draft:
7.8 ft
2.4 m
Ballast:
14100 lbs
6400 kg
Displacement:
36000 lbs
16300 kg
Antifouled area:
538 ft²
50 m²
ON BOARD SYSTEMS
Fuel:
56.8 gal(US)
215 l
Fresh water:
87.2 gal(US)
330 l
Service power:
12 v, 190 ah
Up to 48/038 Engine:
Volvo Penta MD3B
36 hp at 2500 rpm
From 48/039 Engine:
Volvo Penta MD21A
61 hp at 4500 rpm

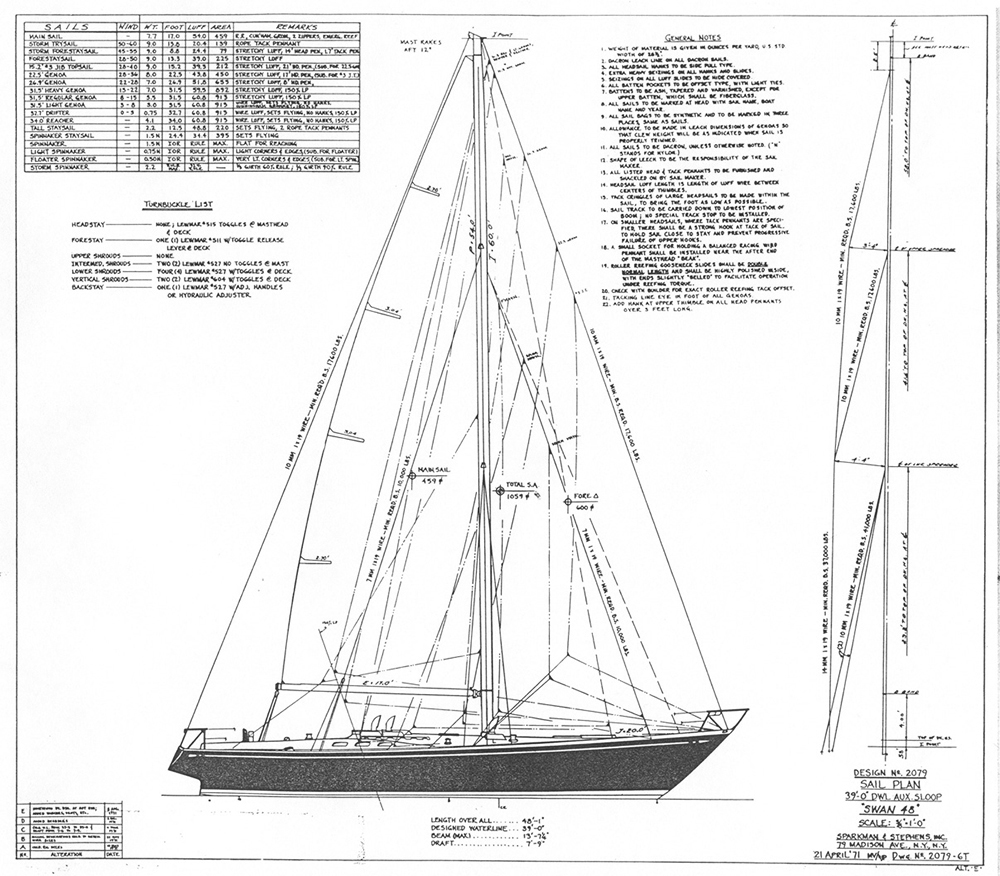

SAIL PLAN
I:
62.5 ft
19.05 m
J:
20 ft
6.1 m
P:
56.5 ft
17.22 m
E:
15.5 ft
4.72 m
Fore triangle: 625 ft² 58.1 m²
Main: 437.9 ft² 40.7 m²
Genoa 150%:
937.5 ft²
87.1 m²
Spinnaker:
2250 ft²
209 m²
