SWAN by S&S
1973-1977 - S&S des. #2150 - 61 hulls built
GENERAL DIMENSION
| Loa: | 41.01 ft | 12.5 m |
| Lwl: | 30.25 ft | 9.22 m |
| Beam: | 11.94 ft | 3.64 m |
| Draft: | 6.9 ft | 2.1 m |
| Ballast: | 9700 lbs | 4400 kg |
| Displacement: | 23800 lbs | 10800 kg |
| Antifouled area: | 441 ft² | 41 m² |
ON BOARD SYSTEMS
| Fuel: | 100 l | |
| Fresh water: | 66 gal(US) | 250 l |
| Service power: | 12 v, 190 ah | |
| Engine: | Perkins 4.108M 37 hp at 3000 rpm |
|

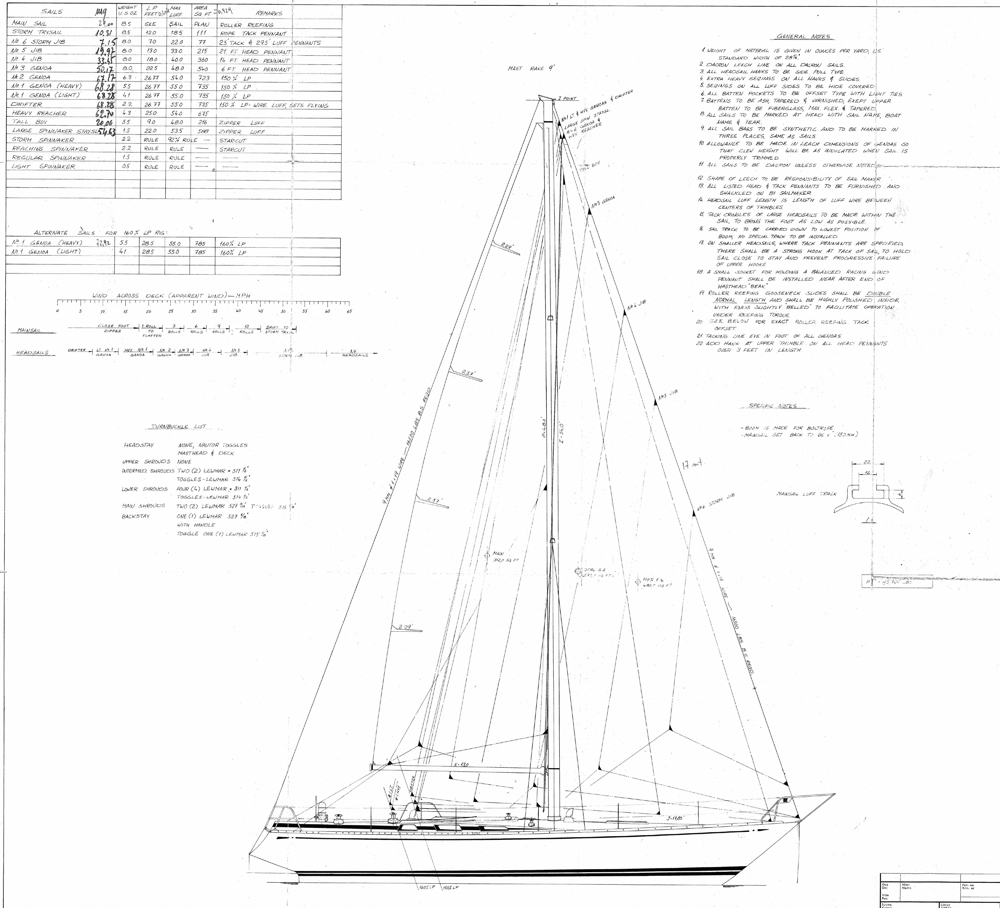

SAIL PLAN
Short rig, single spreaders
| I: | 51 ft | 15.54 m |
| J: | 17.85 ft | 5.44 m |
| P: | 45 ft | 13.72 m |
| E: | 12.5 ft | 3.81 m |
| Fore triangle: | 455.2 ft² | 42.3 m² |
| Main: | 281.2 ft² | 26.1 m² |
| Genoa 150%: | 682.8 ft² | 63.4 m² |
| Spinnaker: | 1639 ft² | 152 m² |
Tall rig, double spreaders
| I: | 54 ft | 16.46 m |
| J: | 17.85 ft | 5.44 m |
| P: | 48 ft | 14.63 m |
| E: | 13 ft | 3.96 m |
| Fore triangle: | 482 ft² | 44.8 m² |
| Main: | 312 ft² | 29 m² |
| Genoa 150%: | 722.9 ft² | 67.2 m² |
| Spinnaker: | 1735 ft² | 161 m² |
