Associated Swan 47's:




























































1974-1979 - S&S des. #2201 - 70 hulls built
GENERAL DIMENSION
Loa:
47.8 ft
14.57 m
Lwl:
36.24 ft
11.05 m
Beam:
13.76 ft
4.19 m
Draft:
7.8 ft
2.33 m
Ballast:
15500 lbs
7000 kg
Displacement:
32400 lbs
14700 kg
Antifouled area:
506 ft²
47 m²
ON BOARD SYSTEMS
Fuel:
55.5 gal(US)
210 l
Fresh water:
94.4 gal(US)
365 l
Service power:
12 v, 285 ah
Engine:
Volvo Penta MD21A
61 hp at 4500 rpm

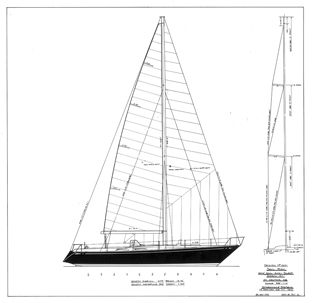

SAIL PLAN
I:
62 ft
18.9 m
J:
19.8 ft
6.04 m
P:
55.7 ft
16.98 m
E:
16 ft
4.88 m
Fore triangle: 613.8 ft² 57 m²
Main: 445.6 ft² 41.4 m²
Genoa 150%:
920.7 ft²
85.5 m²
Spinnaker:
2210 ft²
205 m²
