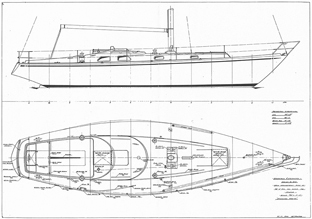

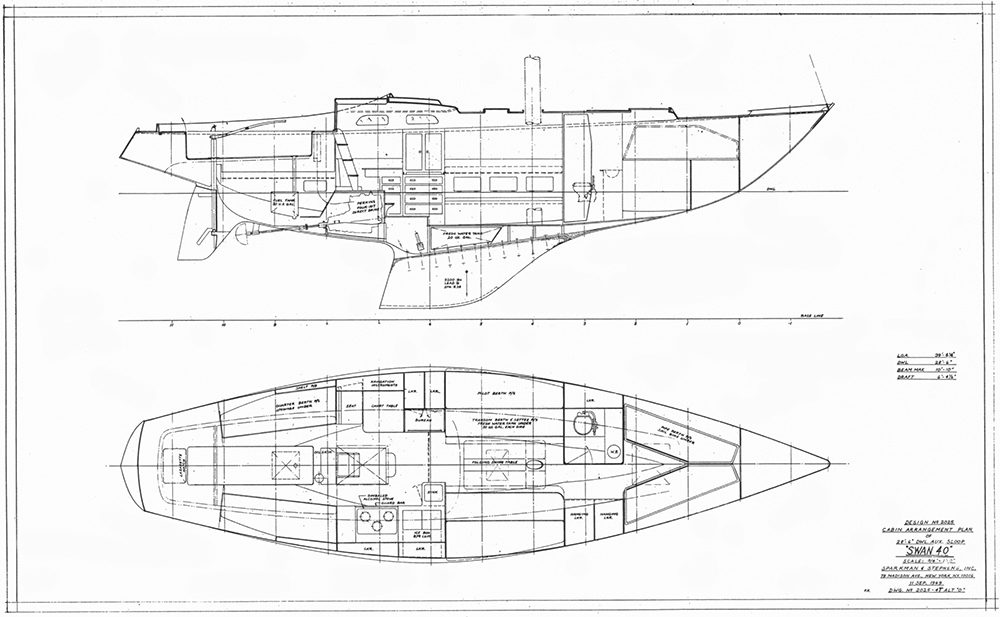

Associated Swan 40's:





































1970-1972 - S&S des. #2025 - 51 hulls built
GENERAL DIMENSION
Loa:
39.3 ft
11.98 m
Lwl:
28.54 ft
8.7 m
Beam:
10.83 ft
3.3 m
Draft:
6.7 ft
2.05 m
Ballast:
7900 lbs
3600 kg
Displacement:
19000 lbs
8600 kg
Antifouled area:
387 ft²
36 m²
ON BOARD SYSTEMS
Fuel:
39.6 gal(US)
150 l
Fresh water:
47.6 gal(US)
180 l
Service power:
12 v, 190 ah
Engine:
Volvo Penta MD2B
25 hp at 2500 rpm

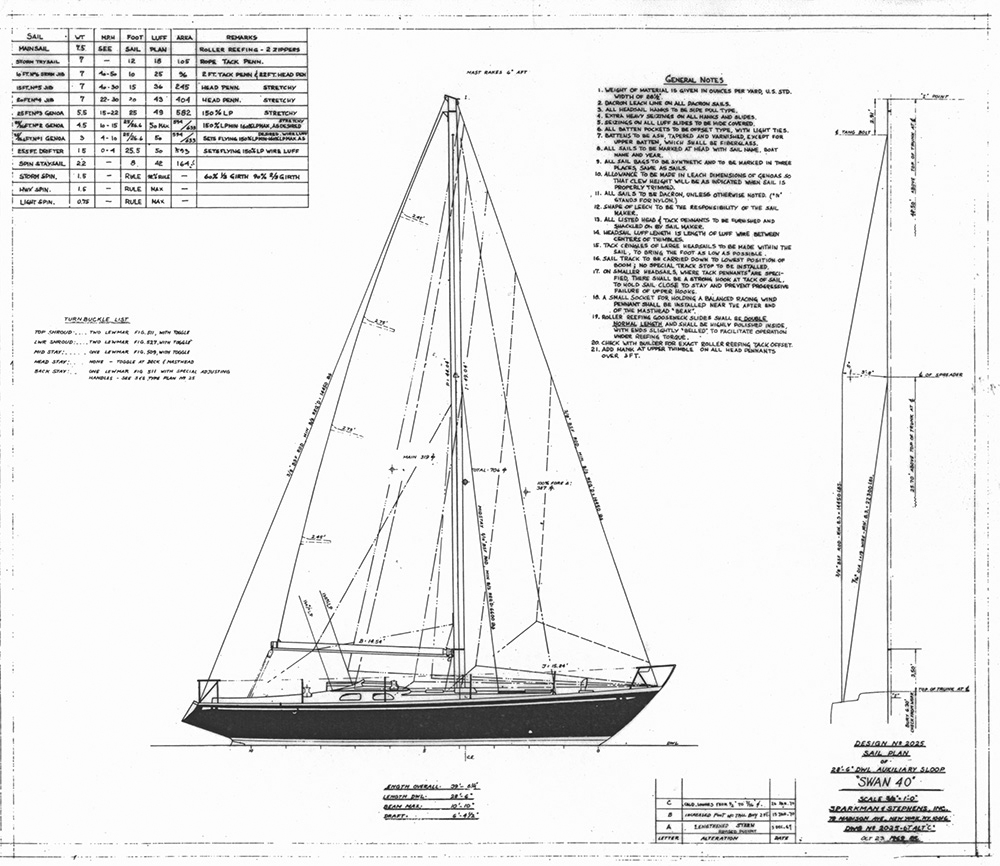

SAIL PLAN
Short rig (wheel steereing)
I:
49.04 ft
14.95 m
J:
15.84 ft
4.83 m
P:
44.04 ft
13.42 m
E:
14.54 ft
4.43 m
Fore triangle: 388.4 ft² 36.1 m²
Main: 320.2 ft² 29.7 m²
Genoa 150%:
582.6 ft²
54.1 m²
Spinnaker:
1398 ft²
130 m²
Tall rig (tiller steering)
I: 51 ft 15.54 m
J: 15.84 ft 4.83 m
P: 46 ft 14.02 m
E: 12.5 ft 3.81 m
Fore triangle: 403.9 ft² 37.5 m²
Main: 287.5 ft² 26.7 m²
Genoa 150%: 605.9 ft² 56.3 m²
Spinnaker: 1454 ft² 135 m²
