Associated Swan 65's:
































1971-1989 - S&S des. #2110 - 41 hulls built
GENERAL DIMENSION
Loa:
64.57 ft
19.68 m
Lwl:
47.50 ft
14.334 m
Beam:
16.40 ft
4.96 m
Draft:
9.6 ft
2.9 m
Most boats Ballast: 30600 lbs 13900 kg
Early boats Ballast:
23000 lbs
10400 kg
Displacement: 70000 lbs 31800 kg
Antifouled area:
775 ft²
72 m²
ON BOARD SYSTEMS
Fuel:
56.8 gal(US)
Fresh water:
87.2 gal(US)
Service power:
12 v, 190 ah
Engine: Volvo Penta MD32
89 hp
or:
Perkins H6.354M
115 hp
From 65/037 Engine:
TMD41A, 148 hp

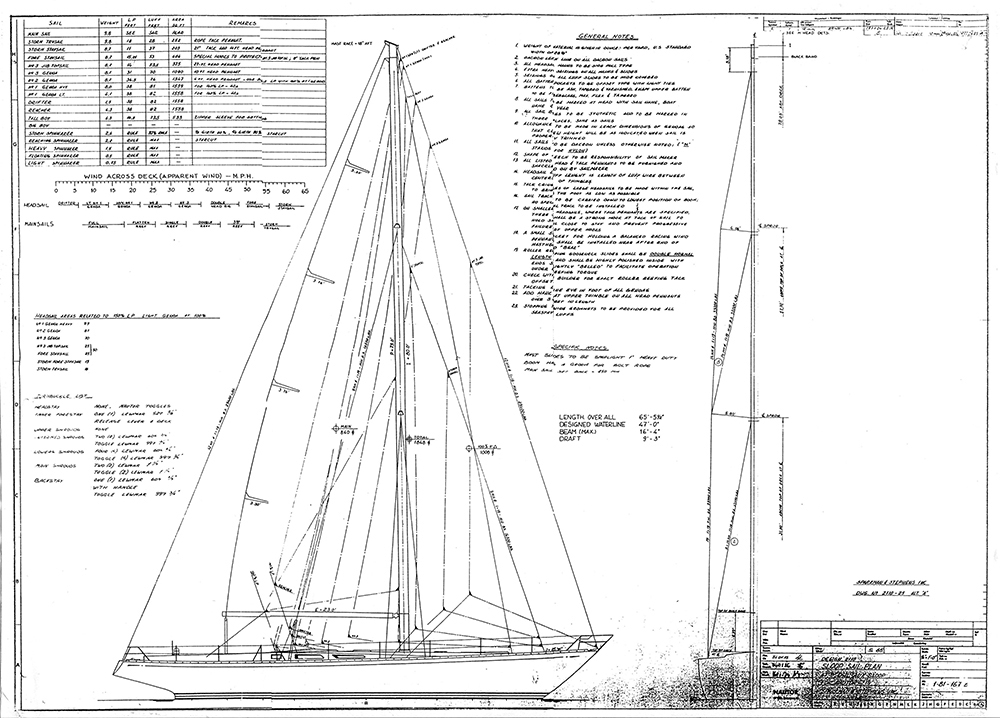

SAIL PLAN
Sloop
I:
80 ft
24.38 m
J:
25.36 ft
7.73 m
P:
73 ft
22.25 m
E:
23 ft
7.01 m
Fore triangle: 1014.4 ft² 94.2 m²
Main: 839.5 ft² 78 m²
Genoa 150%:
1521.6 ft²
141.4 m²
Spinnaker:
3652 ft²
339 m²

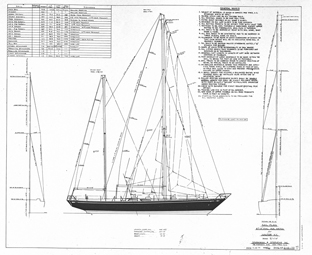

Ketch
I: 74.90 ft 22.83 m
J: 24.20 ft 7.38 m
P: 67.72 ft 20.64 m
E: 18.3 ft 5.58 m
PY: 45.04 ft 13.73 m
EY: 12.08 ft 3.68 m
Fore triangle: 906.3 ft² 84.2 m²
Main: 619.6 ft² 57.6 m²
Genoa 150%: 1359.4 ft² 126.3 m²
Spinnaker: 3263 ft² 303 m²
Mizzen: 272 ft² 25.3 m²
Mizzen staysail: 715 ft² 66.4 m²
