SŒUR ANNE



A fine example of an iconic model, as close to the original as possible througout, and ready to sail.

Hull number 022, comissioned may 1974 by Nautor (Finland)

Single owner since 1981, constantly updated and personnaly maintained with love.

Location Saint Raphaël, Santa Lucia south basin.(France). French flag.

HULL

LOA :          41 ft,                  12,5 m

Beam :      11,94 ft,           3,64 m

Draft :         6,9 ft,               2,1 m

Displacement : 23800 lb,            10800 kg +

Ballast :                9700 lb ;               4400 kg

ON BOARD SYSTEMS

                  Fuel : 26,4 US gal,           100 l

                  Fresh water : 66 US gal, 250 l

                  Service batteries : 12 V, 300 Ah, engine battery 100 Ah

                  Engine : PERKINS 4108 M,  diesel replaced 2000.

SAIL PLAN

                  Original tall rig by Nautor with single set of spreaders, and slab reefing.

                  I : 54 ft, 16,45m

                  J : 17,85 ft, 5,44 m

                  P : 48 ft, 14,63 m

                  E : 13 ft, 3.96 m

                  Fore triangle :   482 ft²,                   44,8 m²

                  Main sail :            339 ft²,                   32 m²

                  Genoa 150% : 735 ft²,                   69,7 m²

                  Spinnaker :         1735 ft²,                161 m²

ACCOMODATION

Nautor teak satin varnished interior, constantly maintained in good condition, with excellent ventilation through three deck Dorade vents, and efficient air circulation.

                  Original upholstery in all cabins  all lights converted to LEDs.

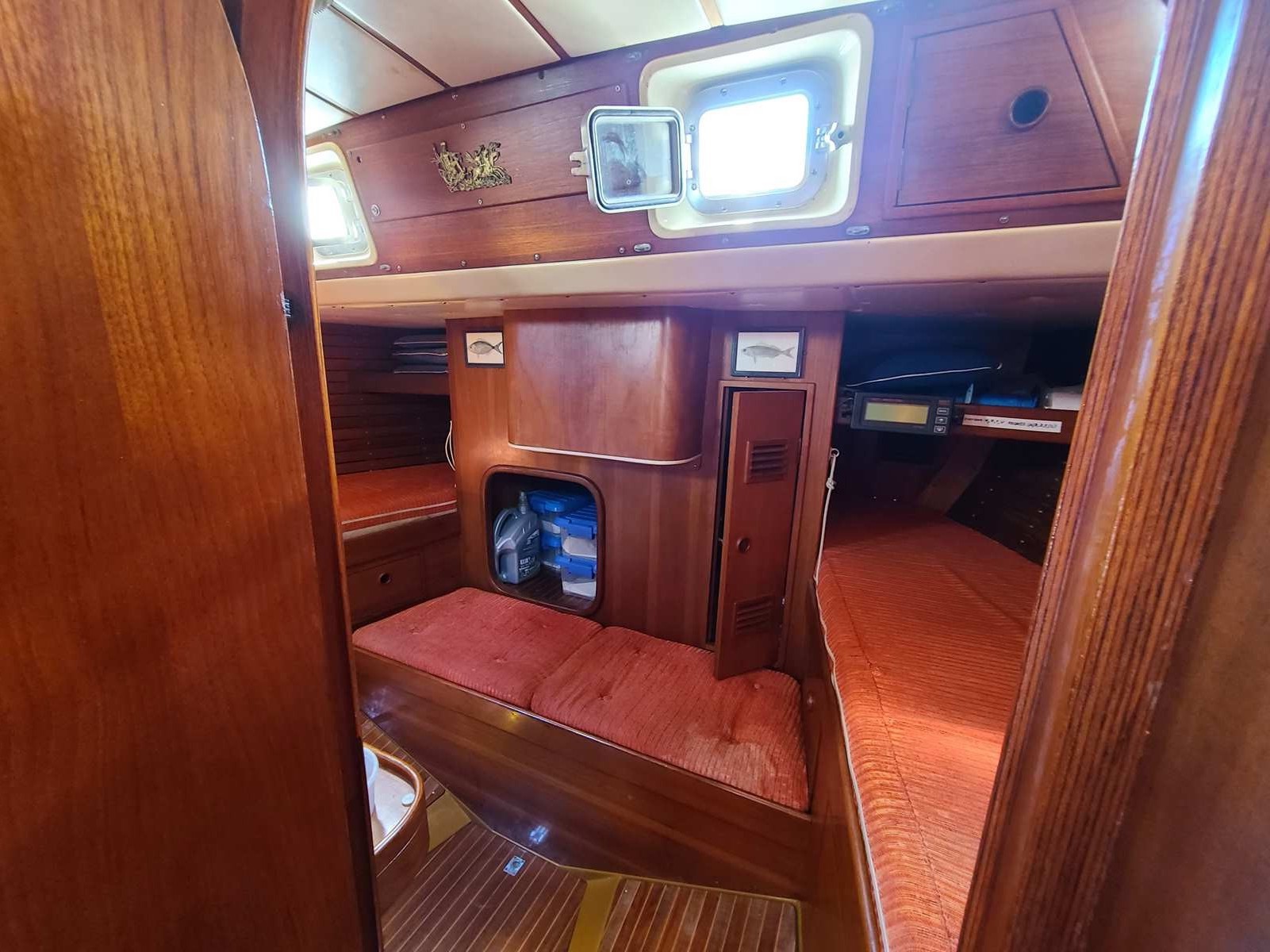

                  Rear cabin with 2 single berths, hanging locker, and improved storage under berths.

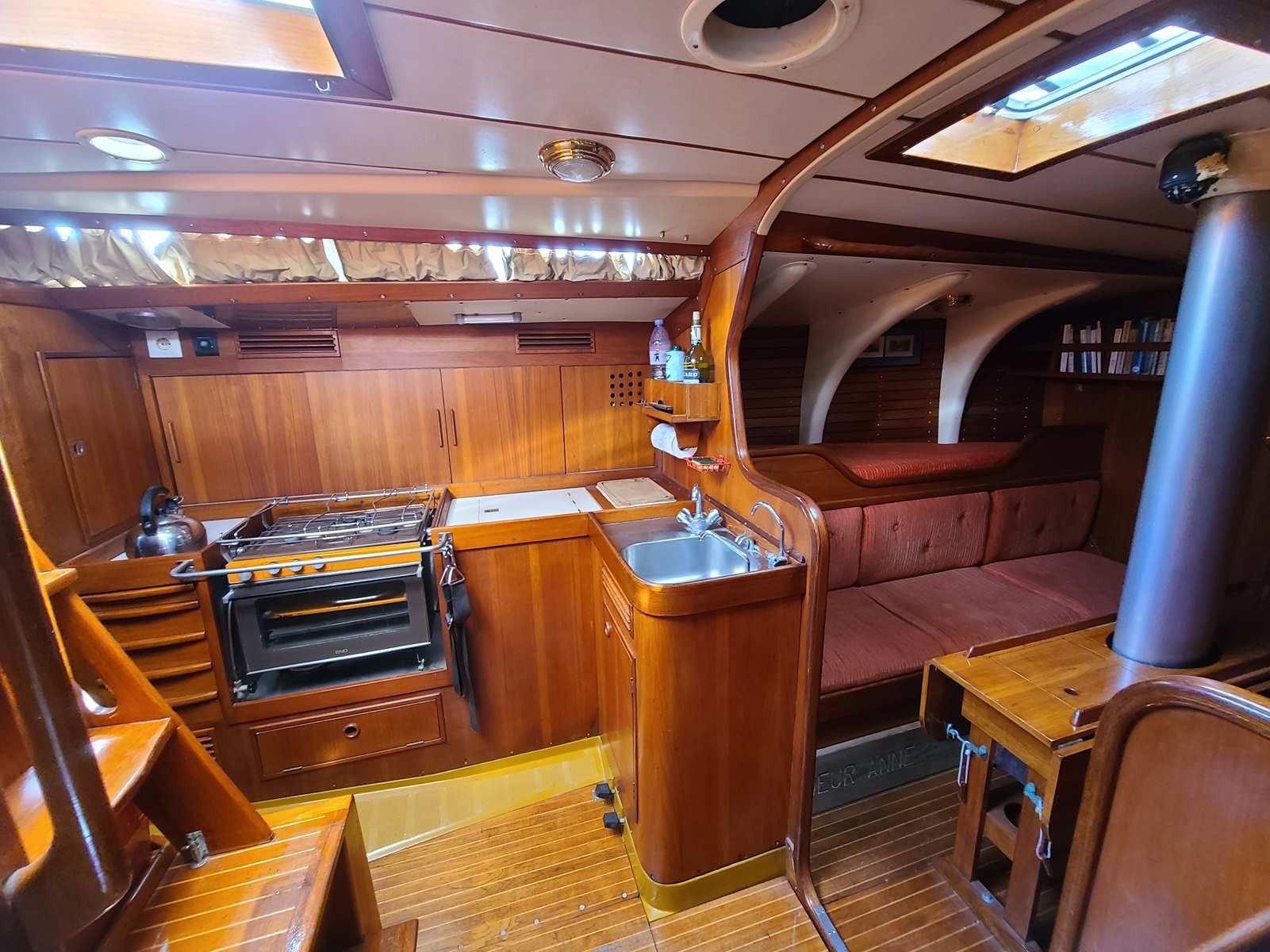

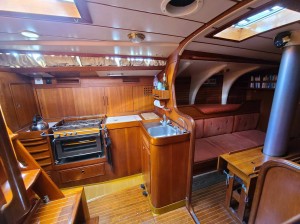

Galley to port with fridge (recent, improved ventilation), original ENO 3 burner gas stove and oven, very large storage, drawers, drinking water filtre. Fully equipped.

Hot and cold water, with foot pump or pressurized.  220 V water heater.

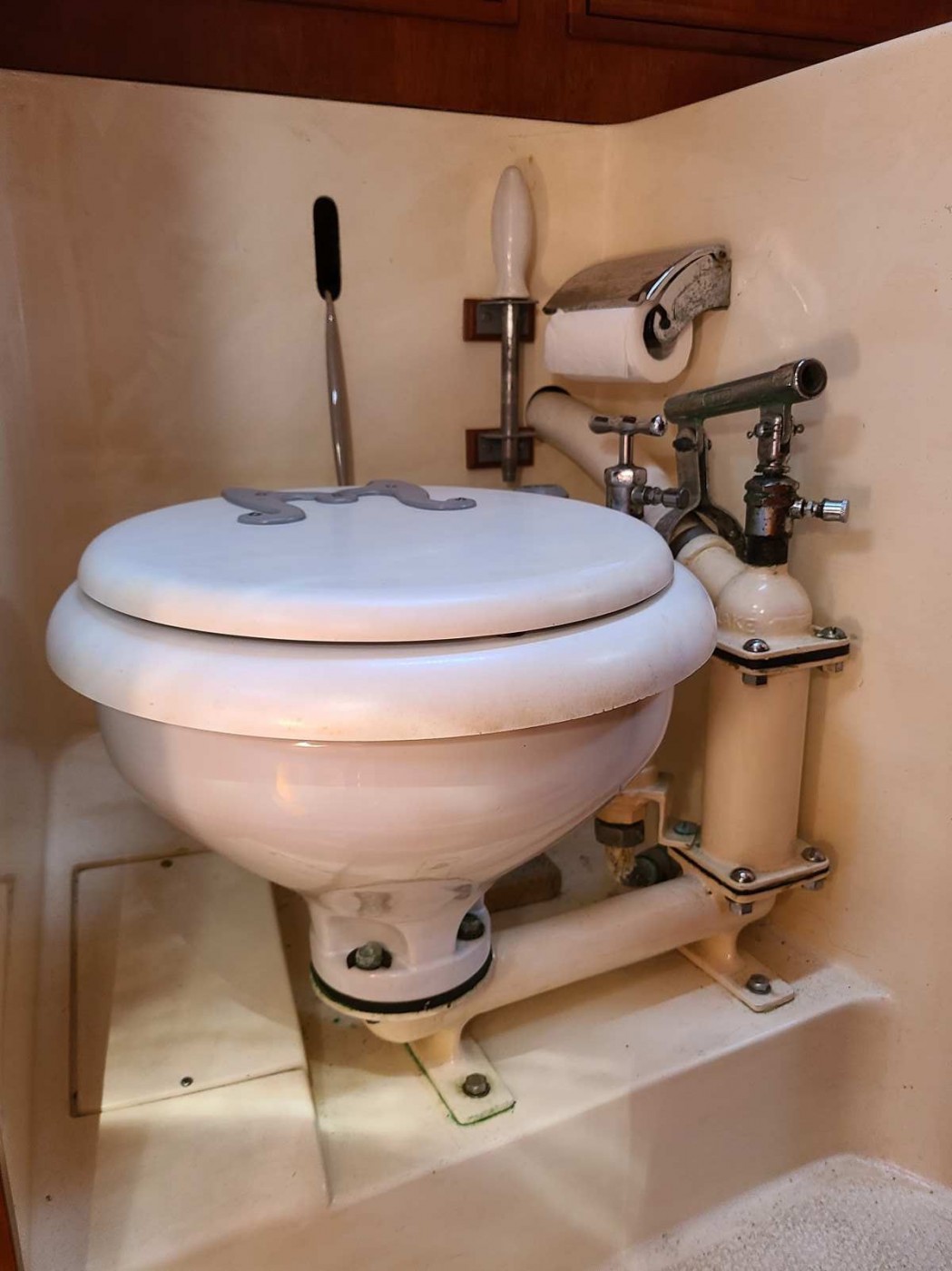

Head compartment : Wash basin and shower, two cupbooads with mirrors, hanging locker, original Baby Blake toilet (complete refit 2017), stainless steel black water tank # 80 l with level indicator, (2010), grey water tank 52l, electric pumps, valves all new or in excellent condition.  (through hull replaced 2023).

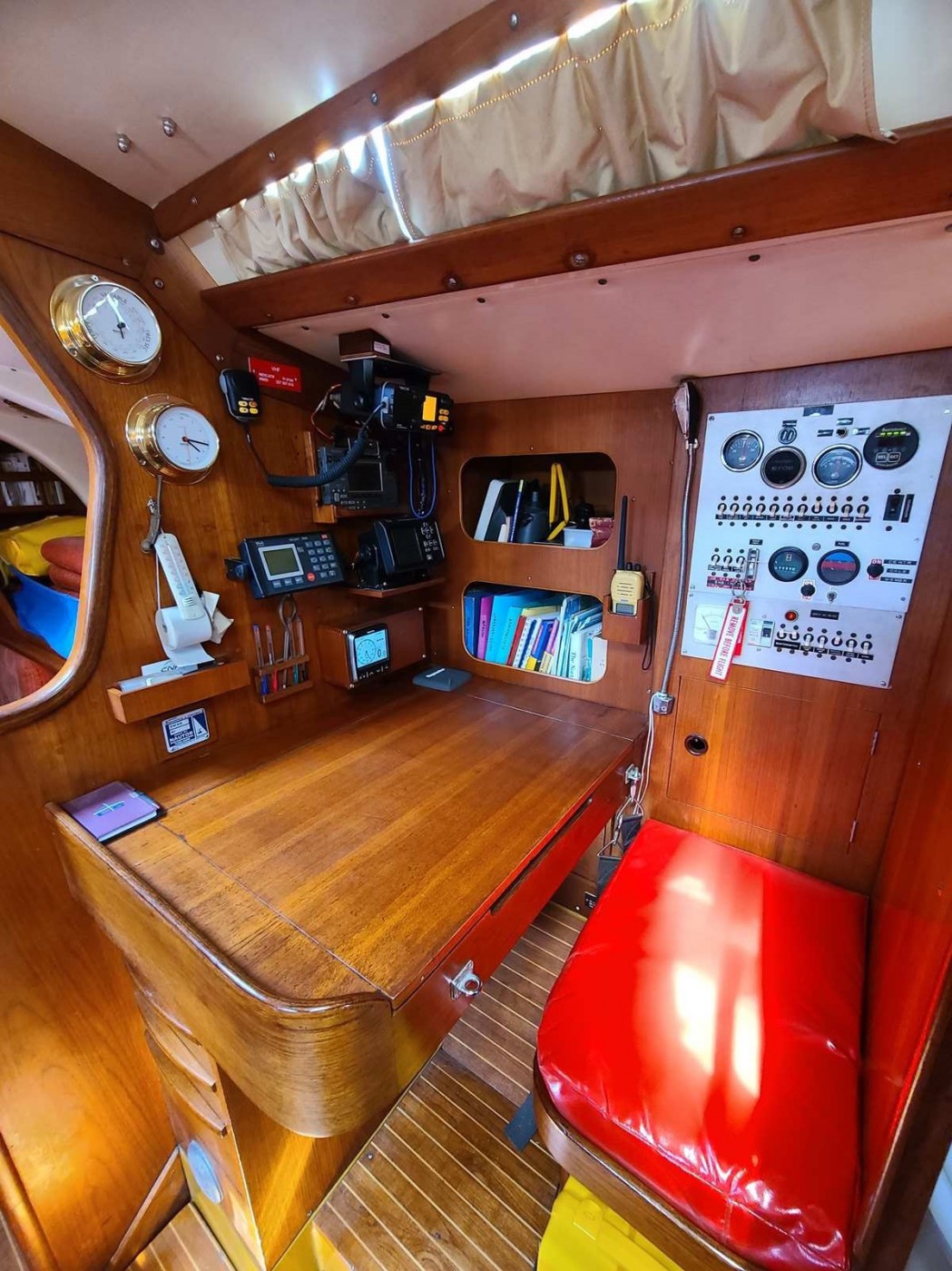

Nav station : chart table wit maps under, book storage, and large space for instruments, drawers.

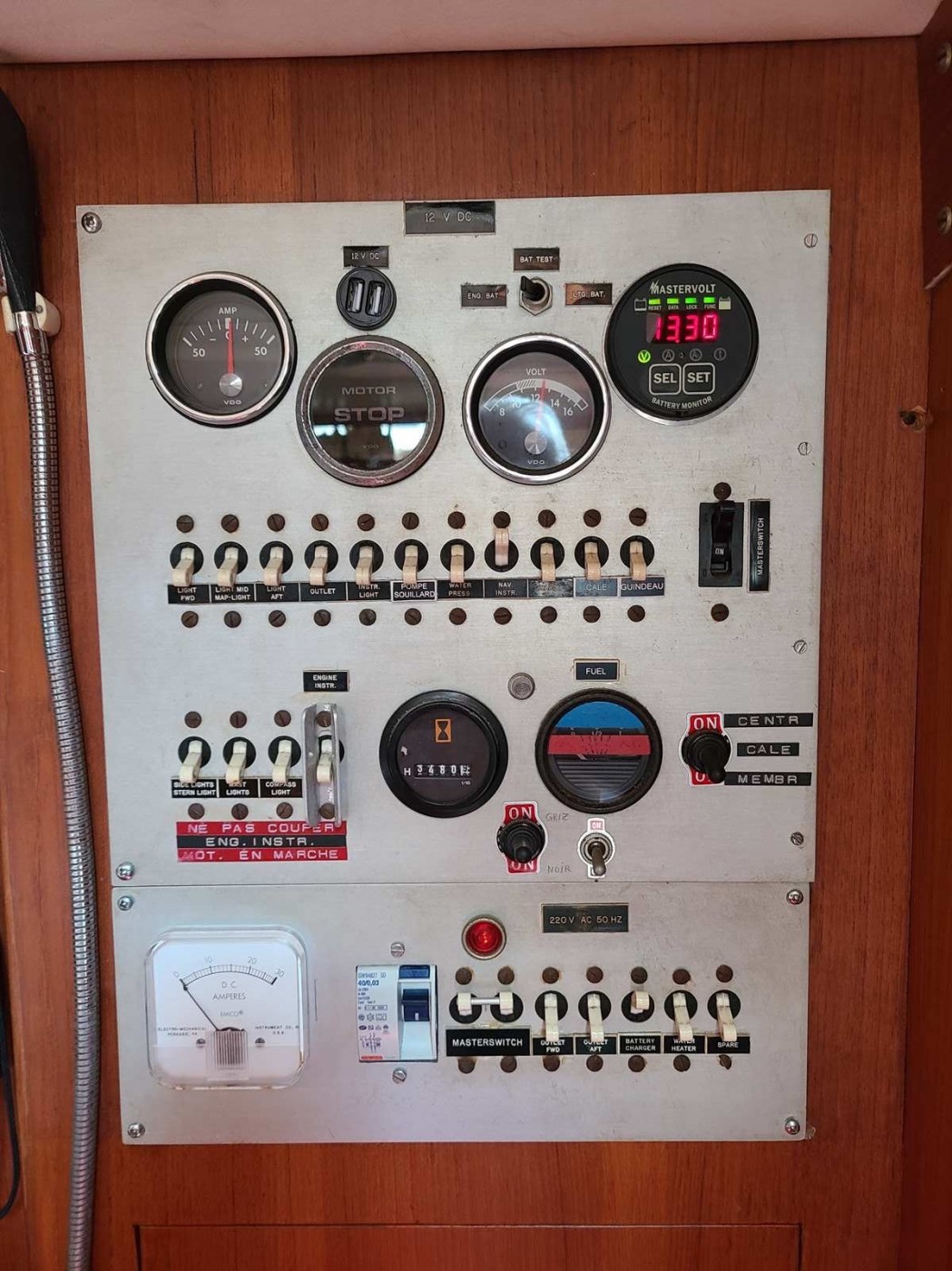

Electrical panel : updated with service battery monitor, fuel level indicator.

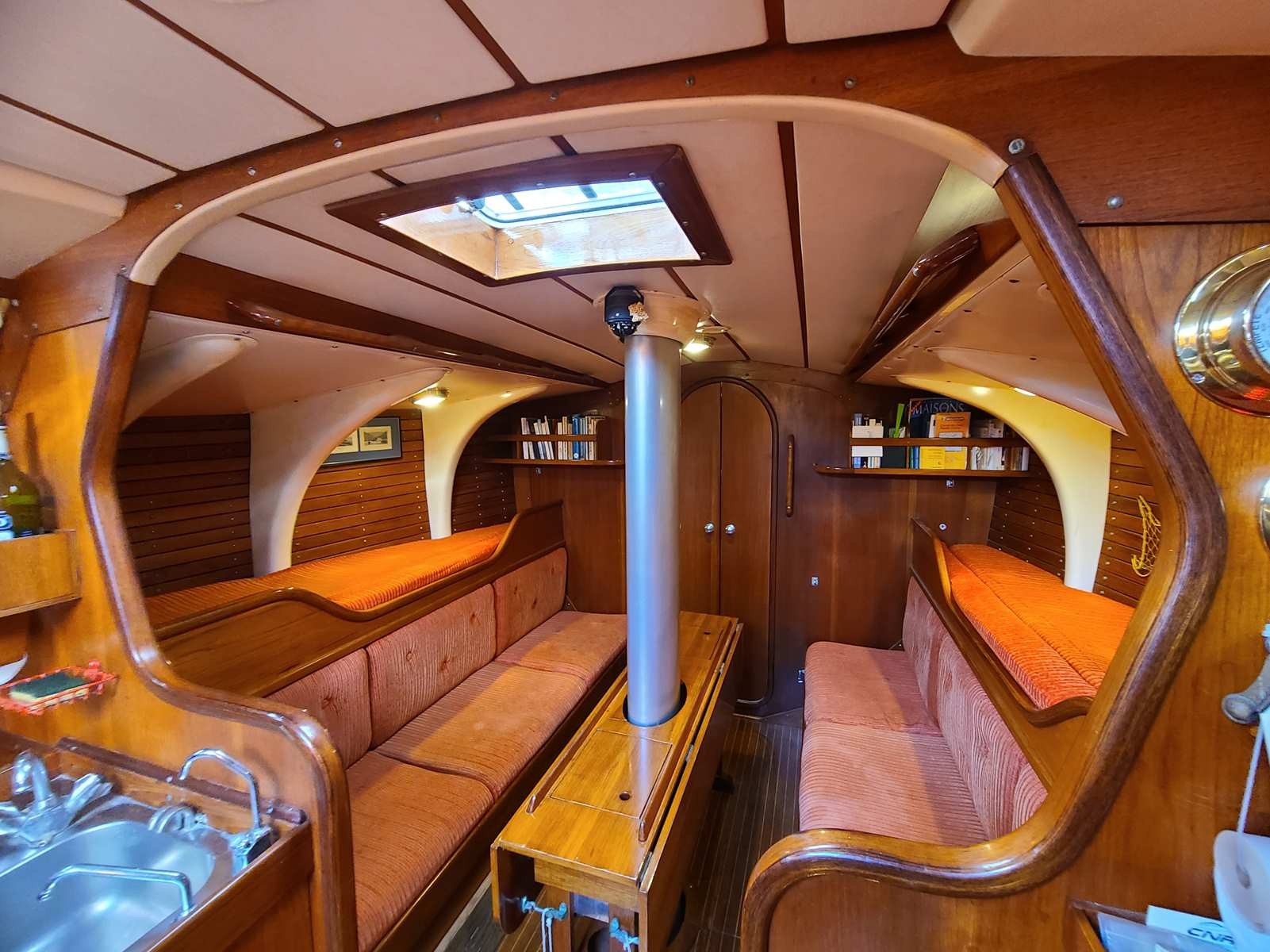

Main cabin with two settees and folding table, large storage under two upper berths.

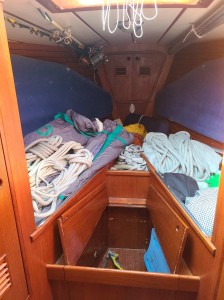

Two hanging lockers, and front cabin with original pipecots, and very large storage under, for sails, dingy, exct.

HULL

Above water : painted Oyster white by Awlgrip, with standard Nautor Swan blues stripes (Awlgrip Marlin blue).

Under water : full osmosis treatment with epoxy International Gelshield by SMN at Port Grimaud 2008-2009.

Rudder : original with skeg, complete check 2009.

Four Blake bronze Blake seakocks (the two large ones are new).

RIG AND SAILS (Tall rig, single set of spreaders)

Type of rig : sloop.

Original Nautor mast, boom, spinnaker poles, and jockey pole. Boom modified for slab reefing. Reiforced mast foot.

All winches original by Lewmar (4x40 two speeds for halyards, 1x16 for mainsail sheet, 2x45 three speeds for spinnaker sheets, 2x8 for reefing), but for the genoa sheets : Harken 56 two speed, self tailing : 2001.

Dyneema main sail halyard (2022) with original Lewmar furling winch.

Standing rigging replaced 2011 with complete mast refit.

Backstay tensioner : mechanical by Harken.

Furling gear for headsail by Wichard/Profurl, drum replaced 2016.

Removable Dyneema headstay for jib with Wichard mechanical tensioner. 10 mm Stainless steel version available.

Mainsail : Quantum la Trinité (France) 2007 (Mylar, taffetas, Pentex). Lazy bag 2020.

150% furling genoa by Quantum la Trinité 2007 (Mylar, taffetas, Pentex).

130% furling genoa  by Technique Voiles La Trinité 2014 (Hydranet)

Heavy duty high aspect ratio jib (solent) by Elvström, with a reef.

Storm Jib

Assymetric spinnaker130 m² by Technique Voiles La Trinité, 2008.

MECHANICAL AND ELECTRICAL

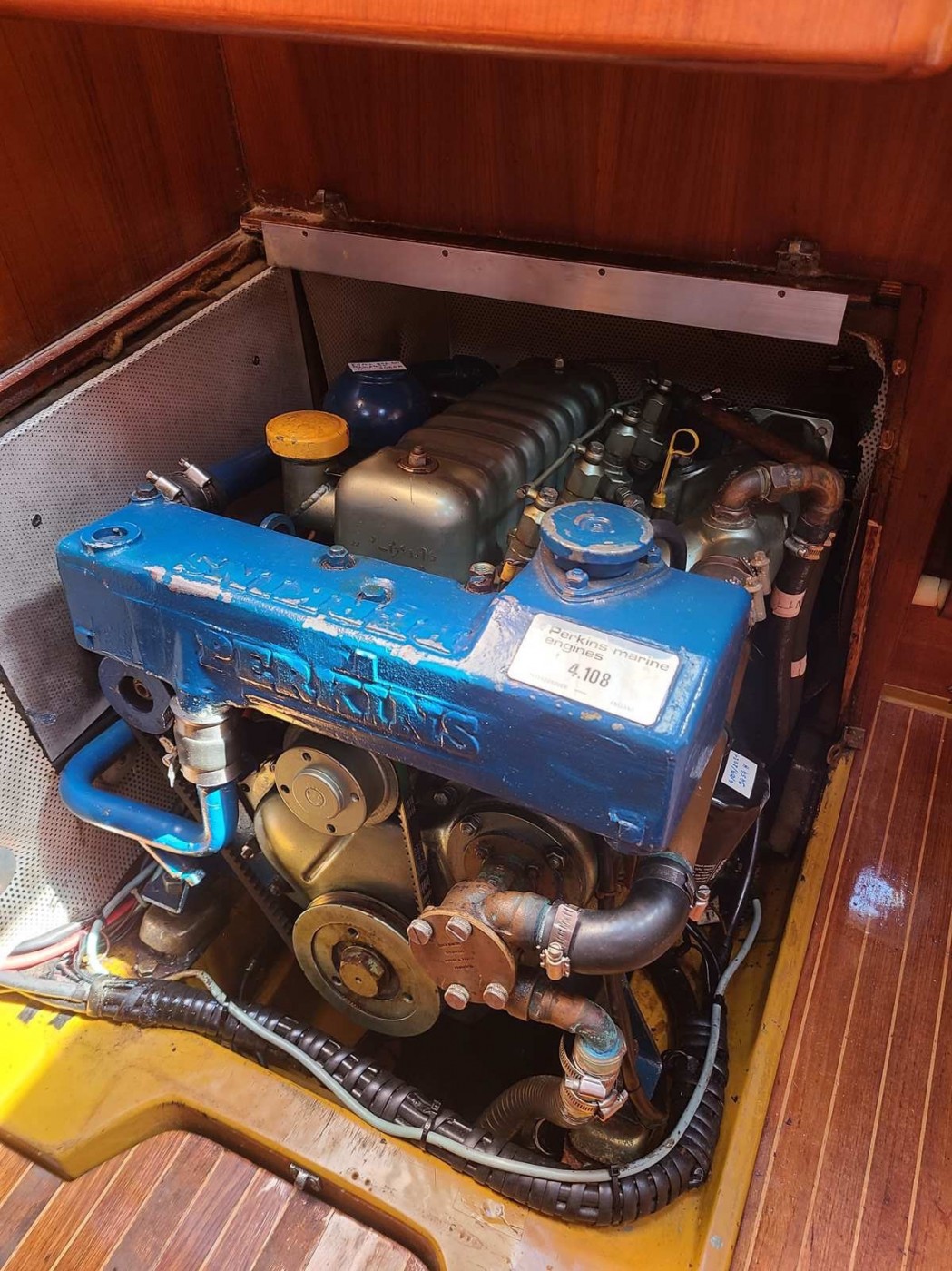

Engine Perkins 4108, 40 ch, fresh water cooling : replaced 2000, injection pump replaced 2010, heat exchangers overhauled 2017.  Today : 1367 h running time.

Borg Warner gear box (original but complete check 2000).

Dry exhaust modified with sacrificial anodes, and flexible metal piping

Three blade Max Prop propeller.

High output 90 Amp alternator with Mastervolt three step charging regulator.

Three 100 Ah service batteries, and one 100 Ah engine battery, diode separator.

Shore battery charger Charger Master 3x50 A. (2020)

Mastervolt service battery monitor.

All lighting equipment converted to LED.

NAVIGATION EQUIPMENT

                  Suunto main compass

                  Chart plotter : Lorentz X7 with independant GPS.

                  AIS : ICOM MA 500 TR with independant GPS and screen

                  VHF Radio : NAVICOM RT 550 DSC/ASN

                  SONY radio receiver

RAYMARINE I 60 wind speed and direction, depth sounder, loch I 50, chart table repeater I70 (2014)

                  NKE hydraulic autopilot.

DECK GEAR

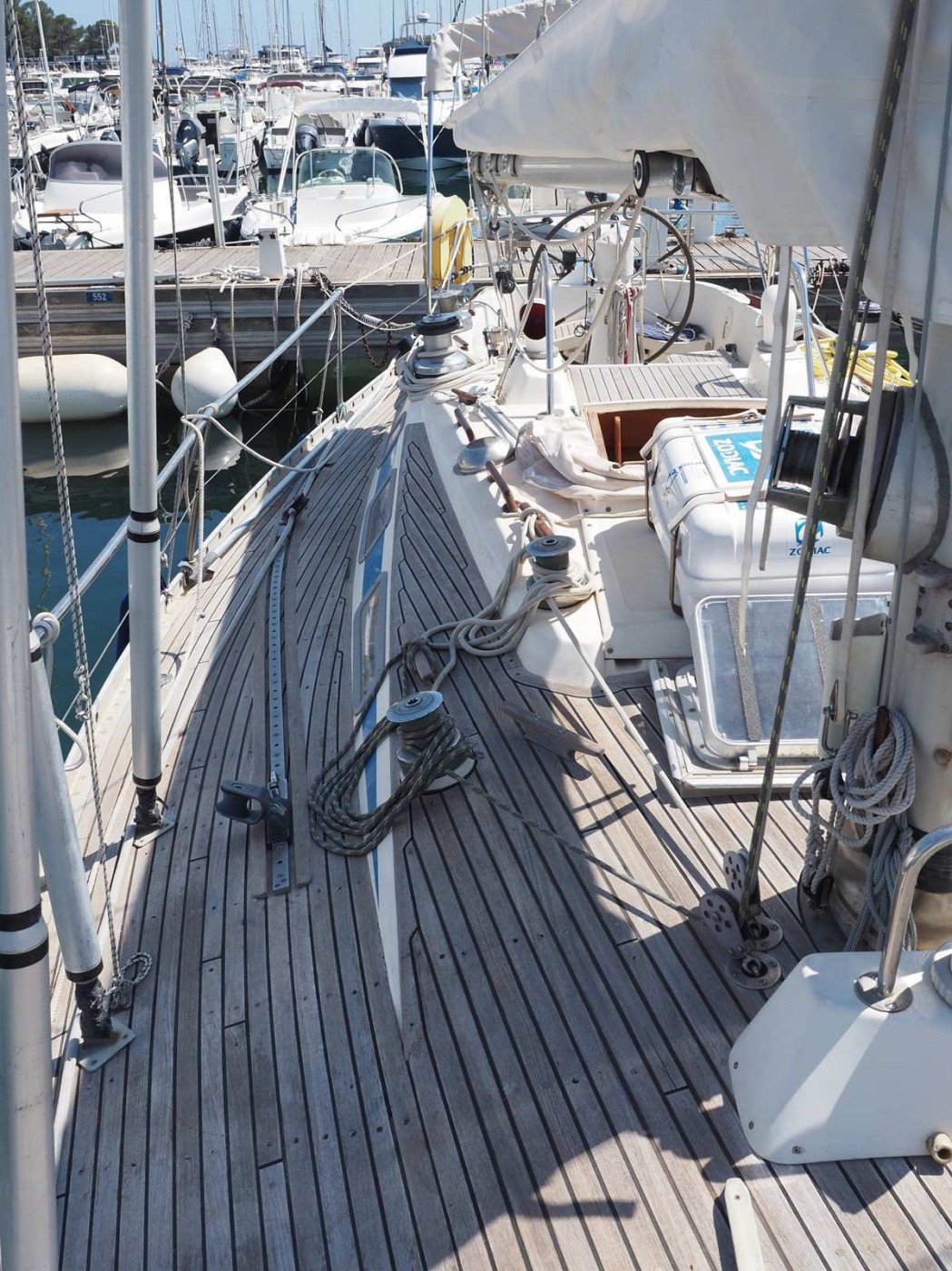

                  Teak deck (replaced 2003, storage under cover from october to may)

                  Genoa sheet winches Harken 56 ST two speed, others original Lewmar.

Front hatch : modified to « drop down » to make it totally waterproof.

Vertical Lewmar 1000 W anchor windlass, with waterproofing cover, and with 60m of 10 mm galvanised chain.

Main anchor : 20 kg Spade.

Other anchors : 20 kg FOB flat anchor, aluminium 7 kg Spade for rear anchorage.

Improved chain locker below.

Bimini.

SAFETY EQUIPMENT

                  Portable VHF : Navicom RT 320

Zodiac 6 places Life raft (to be controlled march 2024)

Flares ;  valid to : may 2028

Lifebuoy with light

Life jackets : 6 +

Epirb : Ocean Signal Rescue Me 1. Valid to: dec 2028

Fire extinguishers : 3 valid to : dec 2027

Bilge pumps : one manual in the cockpit, two electric.

Pyrotechnic wire cutter : Toolova.

TENDER

                  Zodiac 3m  with own anchor.

2.5 HP Yamaha four stroke engine.

                  Electric inflatation pump.

OTHERS

                  Cockpit table and cushions.

Tool box, and spares.

                  Original Nautor SWAN 41 instruction booklet (English and French).

                  Wiring diagram (constantly updated).

                  Instruction booklets for all the equipment.

                  Maintenance booklet.

                  NB : Decoration fittings will not be left on board.

PRICE
Euro 93,000 (VAT paid)

CONTACT
Philippe VIDAL ; philippev941@orange.fr ; +33 (0)6 76 90 95 25





And not the least important :

If you own an S&S Swan you will become part of a worldwide family :

THE SPARKMAN AND STEPHENS SWAN ASSOCIATION

who will provide you with all the information you may need to take care of your Swan, and who will answer all questions related to her maintenance and use.

(NB if you will be selected as the lucky new Custodian of this S&S Swan you have an important responsability, Soeur Anne and her Custodian/Owners for the last 45 years were paramount for the S&S Swan Association. matteo)
