Master DC fuse? Swan 47

Hi,

My anchor windlass blew a fuse, which caused a total failure of the DC system. I have been told it is a fuse, but I don't know where it is or of what capacity.

Help?

John Green

Bones VIII

47/049
01 September 2024 - 17:12
#2
Post Reply
matteosalamon
Join Date: 29 January 2007
Posts: 1049

Hi John,

did you check the Heinemann breaker on the electrical panel?

matteo (47/069 Vanessa)
02 September 2024 - 02:20
#3
Post Reply
johngreen
Join Date: 13 April 2020
Posts: 16

Great question, Matteo. What is it?



Best,

John
02 September 2024 - 08:15
#4
Post Reply
matteosalamon
Join Date: 29 January 2007
Posts: 1049

Dear John,

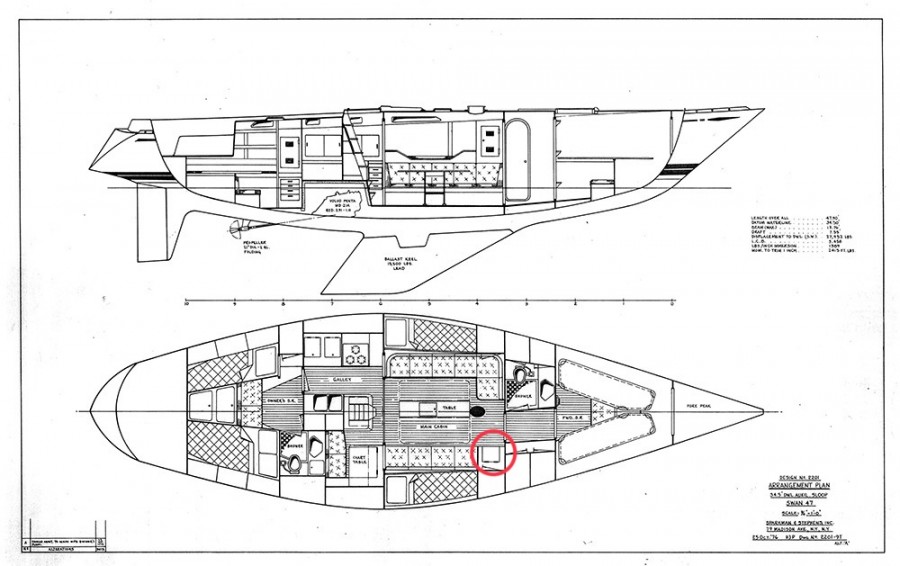

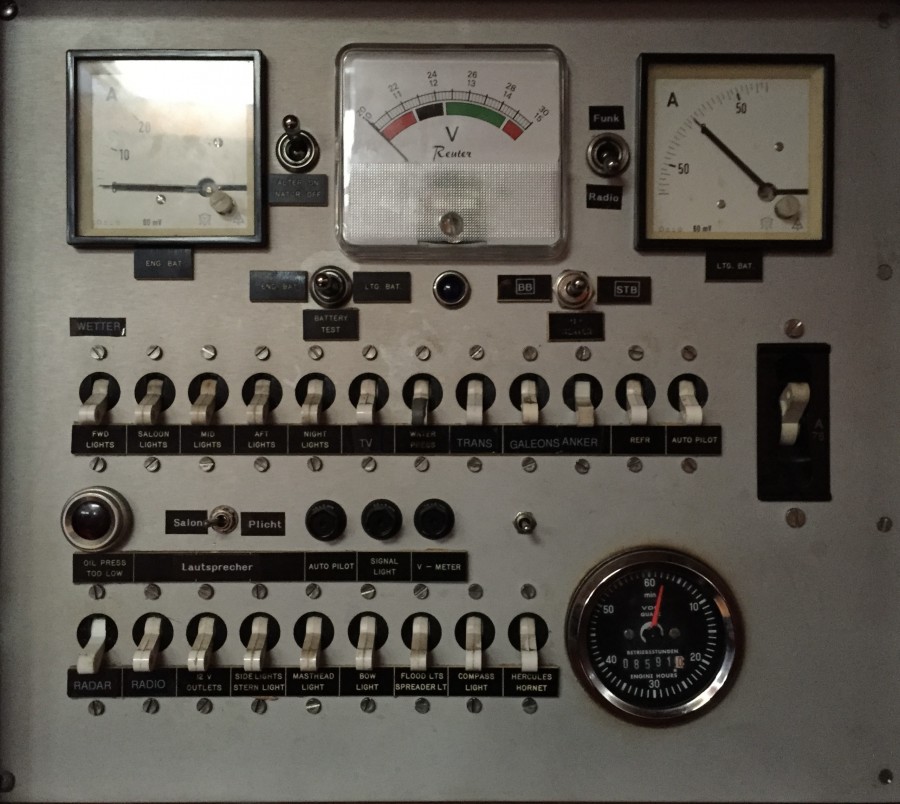

I don't know which one is in your panel, maybe if  the windlass was not installed in origin (the case of the old  S&S Swan 47 switch panel shown below) it is not a Heinemann breaker but a switch /fuse box somewhere else, e.g. (usually) where you have mast wind station connections (see second photo).

You have to follow the cables to find out.

Please keep us posted!

matteo (47/069 Vanessa


02 September 2024 - 12:13
#5
Post Reply
Navigare
Join Date: 27 October 2013
Posts: 61

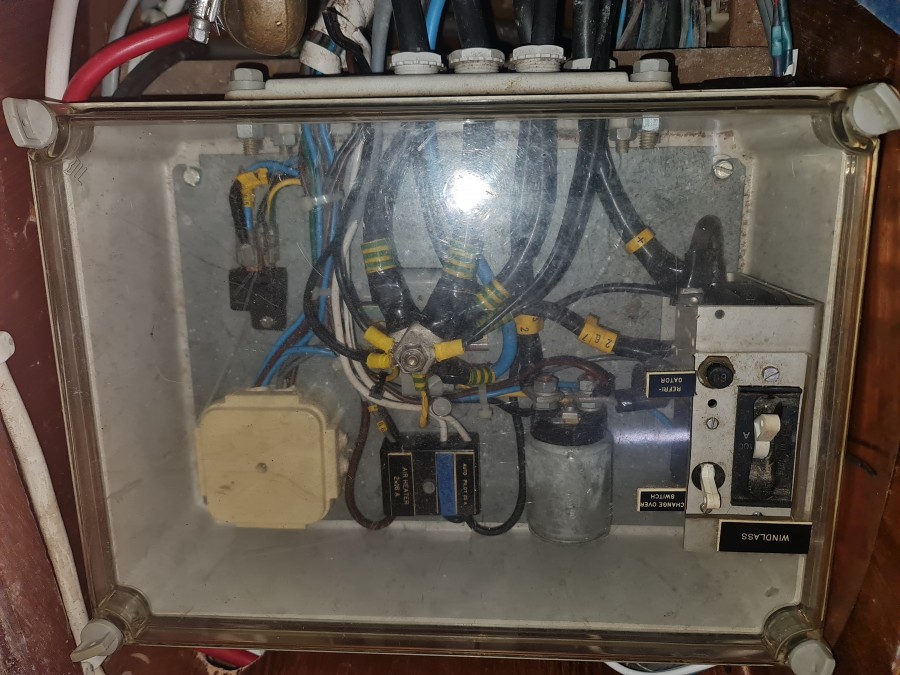

The breaker for the windlass on Mallemuk (47/045) is under the navigation table seat.

Picture is shown up side down. Unable to correct it.


02 September 2024 - 19:10
#6
Post Reply
johngreen
Join Date: 13 April 2020
Posts: 16

I did not think to look at the lockers across from the mast!

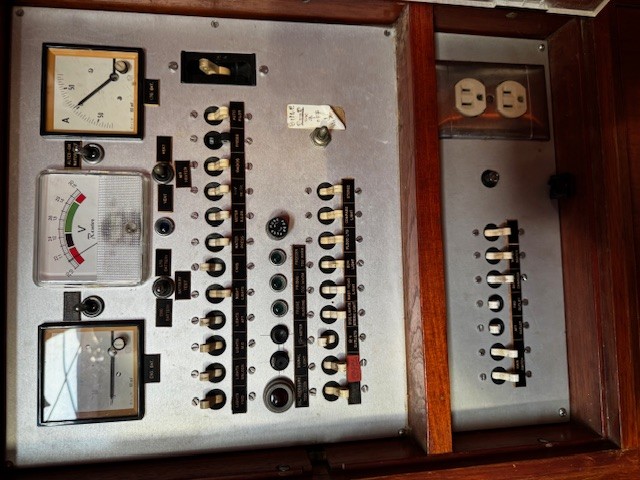

Here are some pictures of what I do have:





DC/AC Panel

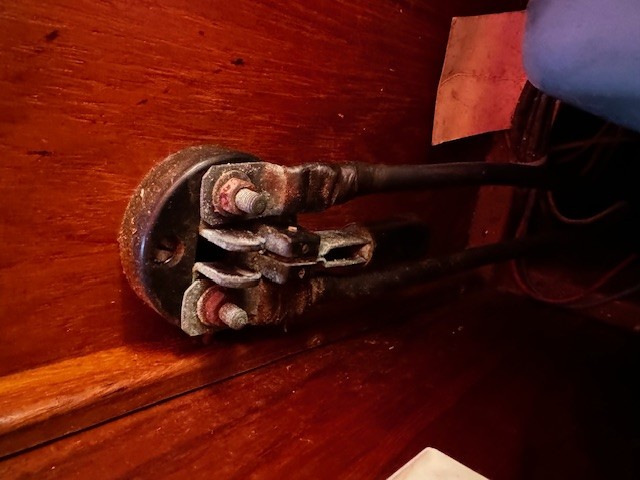

Blade switch under Nav Station
02 September 2024 - 21:03
#7
Post Reply
johngreen
Join Date: 13 April 2020
Posts: 16

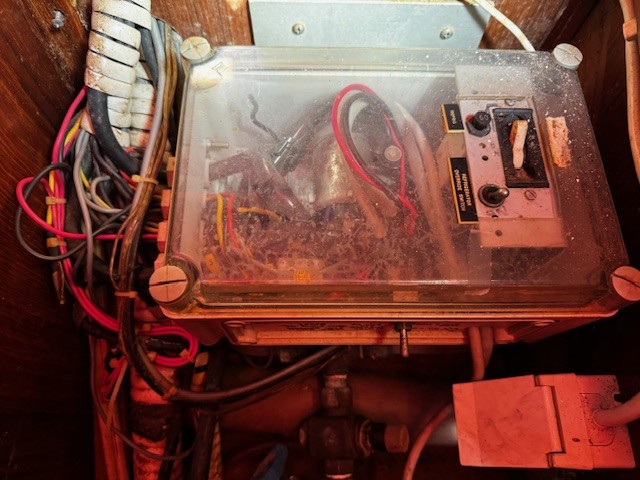

One more picture - box under the nav station seat, but it looks like it is for refer & freezer and something else?
02 September 2024 - 23:36
#8
Post Reply
johngreen
Join Date: 13 April 2020
Posts: 16

I found the blown fuse in the lower fuse container located withing the DC cutoff panel. 100 Amps. I hope Amazon is my friend and I wil ave replacements here tomorrow.

Thank you all for your help and support.
03 September 2024 - 04:46
#9
Post Reply
matteosalamon
Join Date: 29 January 2007
Posts: 1049

Dear John,

well done! Now you have to find out why it blown away.

Could you please upload a pic of fuse location onboard?

matteo (47/069 Vanessa)
03 September 2024 - 15:15
#10
Post Reply
johngreen
Join Date: 13 April 2020
Posts: 16

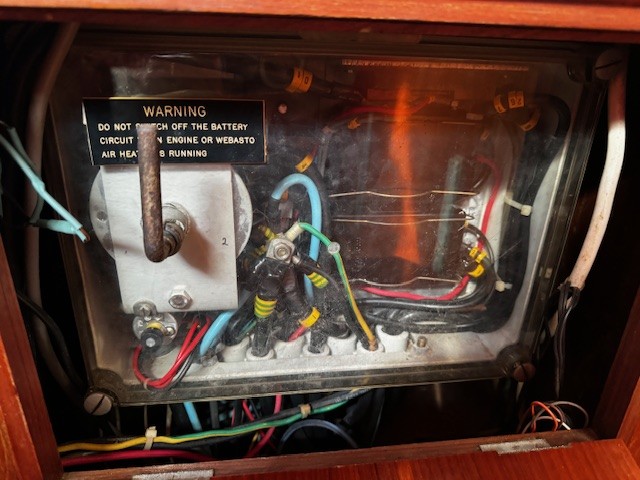

It is in the cabinet under the main DC panel with the master DC disconnect. There are two covered fuse boxes with the fuses inside. The one that blew is 100 Amps.

The "bigger" picture is hard to see, but the two fuse boxes are to the right of the disconnect switch.

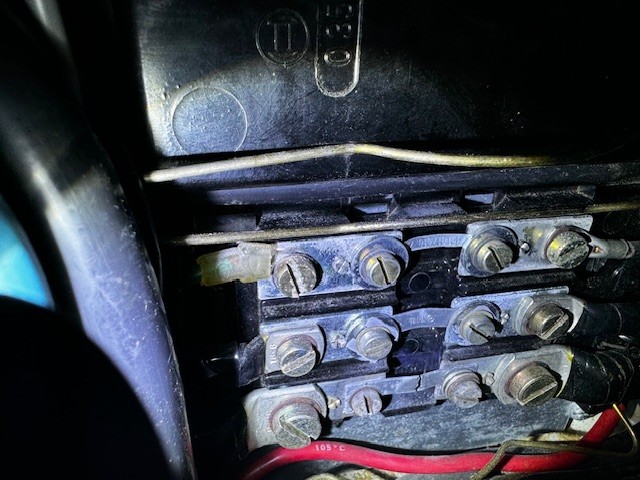

Both boxes & disconnect

Closeup of fuse box
